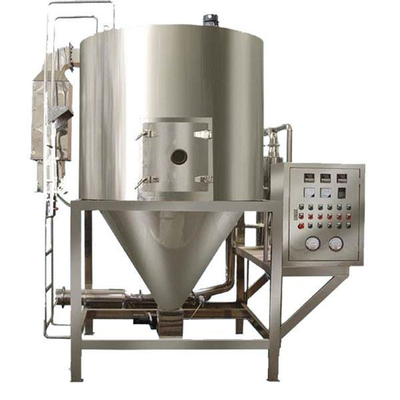

GMP Standard Energy Saving Industrial Spray Drying Machine

GMP Standard Energy Saving Industrial Spray Drying Machine
GMP Standard Energy Saving Industrial Spray Drying Machine

Large Image :  GMP Standard Energy Saving Industrial Spray Drying Machine

Product Details:
Place of Origin: China
Brand Name: WELLDONE
Certification: CE, ISO 9001: 2008, ISO 10004
Model Number: LPG-(5-2000)
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Wooden Case + Plastic Film + Steel Frame
Delivery Time: 30-90Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10Sets/Months

GMP Standard Energy Saving Industrial Spray Drying Machine

Description
Voltage: 110V/220V/380V/415V/480V Hertz: 50HZ, 60HZ
Material: SUS304/SUS316L Installation Power: 2.2KW-255KW
Drying Temperature: 120-350℃ Weight: 0.25Ton-40Ton
Heating Resource: Steam/Electric/Gas/Diesel Drying Efficiency: 70%
Way To Control: Button/Touch Screen/Remote Special Design: Explosion Resistance/Low Temperature Drying
Loading Capcity: 5KGS/H-10000KGS/H
High Light:

Energy Saving Spray Drying Machine

,

GMP Spray Drying Machine

,

GMP industrial spray dryer

Description of GMP Standard Energy Saving Spray Dryer Plant

Spray drying is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as: solution, emulsion, suspension and pumpable paste states. For this reason, when the particle size and distribution of the final products, residual water contents, volume density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.

Principle of GMP Standard Energy Saving Spray Dryer Plant

After been filtered and heated the air enters into the air distributor on the top of the dryer. The hot air enters into the drying room in the spiral form uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through very short time of contacting the heat air, the materials can be dried into the final products. The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.

Feature of GMP Standard Energy Saving Spray Dryer Plant

1.The drying speed is high when the material liquid is atomized, the surface area of the material will increase greatly. In the hot-air flow, 95%-98% of water can be evaporated at a moment. The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials.

2.Its final products own the good uniformity, flow ability & solubility. And the final products are high in purity and good in quality.

3.The production procedures are simple and the operation and control are easy. The liquid with moisture contents of 40-60% (for special materials, the contents might be up to 90%.)can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity. The product particle diameters, looseness and water contents can be adjusted through changeing the operation condition within a certain range. It is very convenient to carry out control and management.







GMP Standard Energy Saving Industrial Spray Drying Machine 0

GMP Standard Energy Saving Industrial Spray Drying Machine 1





Technical Parameters of GMP Standard Energy Saving Spray Dryer Plant

GMP Standard Energy Saving Industrial Spray Drying Machine 2





Picture of GMP Standard Energy Saving Spray Dryer Plant

GMP Standard Energy Saving Industrial Spray Drying Machine 3





After Sell Service

GMP Standard Energy Saving Industrial Spray Drying Machine 4



Service before sell:

----Provide relative technical data for help equipment selection

----Running pilot test

----Offering advice for equipment selection, material analysis

----Provide flow chart, basic drawing

----Provide technical design



Service in sell:

----Provide factory layout according to contract

----Manufacturing ordered equipment according to the related standard

---- A presentation report of manufacturing situation will be offered every 15days

---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement

---- Photo of wooden case will be offered, wooden case with standard shipping marks.

---- Photo of freight loading will be offered.

---- A record of detailed delivery list will be offered

---- A record of detailed freight loading list will be offered

---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing



Service after sell:

----Send service engineer for help instruct installation.

----Send service engineer for running test at site and training the operator

----Help client for maintenance and repair

----Provide one year spare part

----Quality warranty for two years after sell
