PLC Control Electric Heating Lab Scale Fluid Bed Dryer

PLC  Control Electric Heating Lab Scale Fluid Bed Dryer
PLC  Control Electric Heating Lab Scale Fluid Bed Dryer

Large Image :  PLC Control Electric Heating Lab Scale Fluid Bed Dryer

Product Details:
Place of Origin: China
Brand Name: WELLDONE
Certification: CE, ISO 9001: 2008, ISO 10004
Model Number: GFG-(30-500)
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Wooden Case + Plastic Film + Steel Frame
Delivery Time: 30-60Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10Sets/Months

PLC Control Electric Heating Lab Scale Fluid Bed Dryer

Description
Voltage: 110V/220V/380V/415V/480V Hertz: 50HZ, 60HZ
Material: SUS304/SUS316L Installation Power: 5.5KW-75KW
Drying Temperature: 50-250℃ Weight: 0.25Ton-5Ton
Heating Resource: Steam/Electric/Gas/Diesel Drying Efficiency: 75%
Way To Control: Button/Touch Screen/Remote Special Design: Explosion Resistance/Low Temperature Drying
Loading Capcity: 10KGS/H-500KGS/H
High Light:

Electric heating lab fluid bed dryer

,

PLC lab fluid bed dryer

,

lab scale fluid bed dryer

Features of High Efficient Environmental Friendly Lab Scale Fluid Bed Dryer

1. The advanced technology design with high drying efficient.

2. Reasonable structure and stable performance, Closed sampling fnction

3. Easy operation

4. No dead corner or protruded

5. High quality SUS316,SUS304 stainless steel.

6. PLC designed to ensure a fully automatic control.

7. Process parameters can be printed and original data are reliable.

8. Meets GMP requirements

9. Passed CE/CQC certificate

10. CIP online cleaning system can be chosen to install

Principle of High Efficient Environmental Friendly Lab Scale Fluid Bed Dryer

1.The High Efficient Environmental Friendly Lab Scale Fluid Bed Dryer is composed of main machine (processor), air handling unit(AHU), heating and control systems. When operating, charge the materials into the Bowl, set the procedure and parameters according to process requirements
2.Start the processor.The inlet air is filtered by the air handling unit(AHU)and heated by the heating system

3.The processed air enters the processor to blow up materials into fluidization condition. Materials are apace dried and moisture rapidly vaporized.

4.When the operation has been finished; Move out the Bowl to lock with pharma Lifter for FBD/FBG Bowl for lifting and discharging the produced granules.

5.During the whole process, powder dust and cross pollution are effectively controlled.



PLC  Control Electric Heating Lab Scale Fluid Bed Dryer 0



PLC  Control Electric Heating Lab Scale Fluid Bed Dryer 1



Technical Parameters of High Efficient Environmental Friendly Lab Scale Fluid Bed Dryer

PLC  Control Electric Heating Lab Scale Fluid Bed Dryer 2

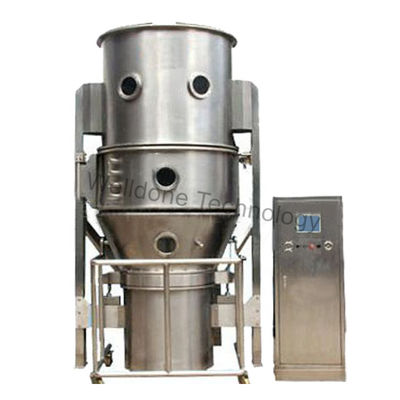

Picture of High Efficient Environmental Friendly Lab Scale Fluid Bed Dryer

PLC  Control Electric Heating Lab Scale Fluid Bed Dryer 3



PLC  Control Electric Heating Lab Scale Fluid Bed Dryer 4



After Sell Service

PLC  Control Electric Heating Lab Scale Fluid Bed Dryer 5



Service before sell:

----Provide relative technical data for help equipment selection

----Running pilot test

----Offering advice for equipment selection, material analysis

----Provide flow chart, basic drawing

----Provide technical design



Service in sell:

----Provide factory layout according to contract

----Manufacturing ordered equipment according to the related standard

---- A presentation report of manufacturing situation will be offered every 15days

---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement

---- Photo of wooden case will be offered, wooden case with standard shipping marks.

---- Photo of freight loading will be offered.

---- A record of detailed delivery list will be offered

---- A record of detailed freight loading list will be offered

---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing



Service after sell:

----Send service engineer for help instruct installation.

----Send service engineer for running test at site and training the operator

----Help client for maintenance and repair

----Provide one year spare part

----Quality warranty for two years after sell





Packing & Delivery

PLC  Control Electric Heating Lab Scale Fluid Bed Dryer 6

PLC  Control Electric Heating Lab Scale Fluid Bed Dryer 7
