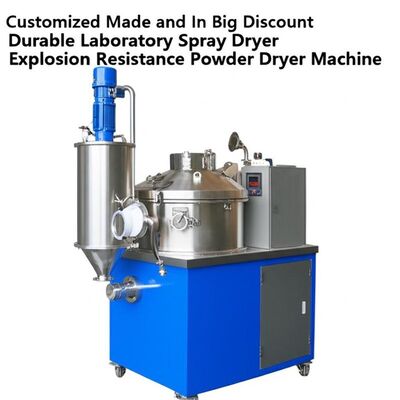

Durable Laboratory Spray Dryer , Explosion Resistance Powder Dryer Machine

Durable Laboratory Spray Dryer , Explosion Resistance Powder Dryer Machine
Durable Laboratory Spray Dryer , Explosion Resistance Powder Dryer Machine

Large Image :  Durable Laboratory Spray Dryer , Explosion Resistance Powder Dryer Machine

Product Details:
Place of Origin: China
Brand Name: WELLDONE
Certification: CE, ISO 9001: 2008, ISO 10004
Model Number: LPG-(5-2000)
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Wooden Case + Plastic Film + Steel Frame
Delivery Time: 30-90Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10Sets/Months

Durable Laboratory Spray Dryer , Explosion Resistance Powder Dryer Machine

Description
Voltage: 110V/220V/380V/415V/480V Hertz: 50HZ, 60HZ
Material: SUS304/SUS316L Installation Power: 2.2KW-255KW
Drying Temperature: 120-350℃ Weight: 0.25Ton-40Ton
Heating Resource: Steam/Electric/Gas/Diesel Drying Efficiency: 70%
Way To Control: Button/Touch Screen/Remote Special Design: Explosion Resistance/Low Temperature Drying
Loading Capcity: 5KGS/H-10000KGS/H
High Light:

spray drying equipment

,

vacuum spray dryer

Description of LPG Lab Scale Spray Dryer / Laboratory Spray Dryer / Mini Spray Dryer

Spray dryer is one of the most popular industrial drying method, it could dried the powder directly from liquid o paste shape material.



Features of LPG Lab Scale Spray Dryer / Laboratory Spray Dryer / Mini Spray Dryer

--1.High speed drying. After liquid raw material being sprayed, its' surface area will be increased greatly. With higher drying efficiency, 95%-98% of water could be evaporated in a few seconds. Drying time is very short, it is suitable for heat sensitive raw material
--2.Product comes from spray dryer has very good uniformity, solubility, fluidity and purity.
--3.The production procedures are simple, the operation and control are easy. Liquid with the moisture contents ranges 40-60% (for some special materials, the moisture content is available at 90%) can be dried into the powder in one time. There is no need for grinding or sieving after spray drying, this simplifies operation procedures and improves product purity. Product size, bulk density, moisture content is adjustable in certain ranges.



Principle of LPG Lab Scale Spray Dryer / Laboratory Spray Dryer / Mini Spray Dryer

Hot air enters into dryer in spiral form under the function of air distributor after being filtered and heated. By passing through high-speed rotary atomizer on top of tower, the liquid raw material will be sprayed into the extremely fine mist beads. Through the very short time of contacting with hot air, the liquid can be dried into final solid powder products. The final products will be discharged continuously from the bottom of drying tower and from cyclone separator. Waste tail air will be discharged from exhaust fan.





Durable Laboratory Spray Dryer , Explosion Resistance Powder Dryer Machine 0

Durable Laboratory Spray Dryer , Explosion Resistance Powder Dryer Machine 1









Technical Parameters of LPG Lab Scale Spray Dryer / Laboratory Spray Dryer / Mini Spray Dryer

Durable Laboratory Spray Dryer , Explosion Resistance Powder Dryer Machine 2





Picture of Spray Dryer in Working

Durable Laboratory Spray Dryer , Explosion Resistance Powder Dryer Machine 3









After Sell Service

Durable Laboratory Spray Dryer , Explosion Resistance Powder Dryer Machine 4



Service before sell:

----Provide relative technical data for help equipment selection

----Running pilot test

----Offering advice for equipment selection, material analysis

----Provide flow chart, basic drawing

----Provide technical design



Service in sell:

----Provide factory layout according to contract

----Manufacturing ordered equipment according to the related standard

---- A presentation report of manufacturing situation will be offered every 15days

---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement

---- Photo of wooden case will be offered, wooden case with standard shipping marks.

---- Photo of freight loading will be offered.

---- A record of detailed delivery list will be offered

---- A record of detailed freight loading list will be offered

---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing



Service after sell:

----Send service engineer for help instruct installation.

----Send service engineer for running test at site and training the operator

----Help client for maintenance and repair

----Provide one year spare part

----Quality warranty for two years after sell





Packing & Delivery

Durable Laboratory Spray Dryer , Explosion Resistance Powder Dryer Machine 5

Durable Laboratory Spray Dryer , Explosion Resistance Powder Dryer Machine 6

Durable Laboratory Spray Dryer , Explosion Resistance Powder Dryer Machine 7
