100kg/H Evaporation Centrifugal Plastic Pressure Spray Dryer

Description of High Efficient Automatic Functioning Pressure Spray Dryer

It is most suitable for producing solid powder or particle products from liquid materials, such as: solution, emulsion, suspension and pumpable paste states, For this reason, when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.

Principle of High Efficient Automatic Functioning Pressure Spray Dryer

After been filtered and heated the air enters into the air distributor on the top of the dryer. The hot air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through the very short time of contacting the heat air, the materials can be dried into the final products. The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.

Feature of High Efficient Automatic Functioning Pressure Spray Dryer

The drying speed is high when the material liquid is atomized, the surface area of the material will increase greatly. In the hot-air flow,95%-98% of water can be evaporated at a moment. The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials.
Its final products own the good uniformity, flow ability & solubility. And the final products are high in purity and good in quality.
The production procedures are simple and the operation and control are easy. The liquid with moisture contents of 40-60%(for special materials, the contents might be up to 90%).can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation condition within a certain range. It is very convenient to carry out control and management.

Technical Parameters of High Efficient Automatic Functioning Pressure Spray Dryer

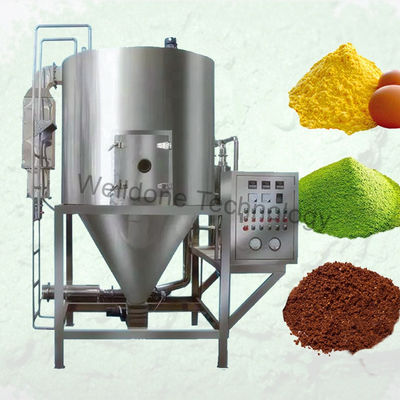

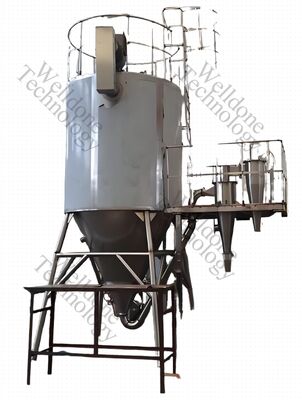

Picture of High Efficient Automatic Functioning Pressure Spray Dryer

After Sell Service

Service before sell:

----Provide relative technical data for help equipment selection

----Running pilot test

----Offering advice for equipment selection, material analysis

----Provide flow chart, basic drawing

----Provide technical design



Service in sell:

----Provide factory layout according to contract

----Manufacturing ordered equipment according to the related standard

---- A presentation report of manufacturing situation will be offered every 15days

---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement

---- Photo of wooden case will be offered, wooden case with standard shipping marks.

---- Photo of freight loading will be offered.

---- A record of detailed delivery list will be offered

---- A record of detailed freight loading list will be offered

---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing



Service after sell:

----Send service engineer for help instruct installation.

----Send service engineer for running test at site and training the operator

----Help client for maintenance and repair

----Provide one year spare part

----Quality warranty for two years after sell

Packing & Delivery
