Product Details:
|
| Voltage: | 110V/220V/380V/415V/480V | Hertz: | 50HZ, 60HZ |
|---|---|---|---|
| Material: | SUS304/SUS316L | Installation Power: | 1.5KW-55KW |
| Drying Temperature: | 50-150℃ | Weight: | 0.5Ton-40Ton |
| Heating Resource: | Steam/Thermal Oil/Hot Water | Drying Efficiency: | 80% |
| Way To Control: | Button/Touch Screen/Remote | Special Design: | Explosion Resistance/Low Temperature Drying |
| Loading Capcity: | 25KGS/Batch-3000KGS/Batch | ||
| Highlight: | vacuum drum dryer,industrial vacuum dryer |
||
1. heat source pass through the sealed jacket
2. the heat will be transmitted to the raw material to be dried through inner shell
3. under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. then the purpose of reinforced drying can realized
4. the material is at a vacuum state, the drop of steam jpressure makes the moisture at the surface of raw material become saturation and will evaporate
5. the solvent will be discharged through vacuum pump
6. the inner moisture of raw material will infiltrate, evaporate and discharge continuously. these three processes are carried continuously and the purpose of drying can be realized within a short time
| Model | SZG-100 | SZG-350 | SZG-500 | SZG-750 | SZG-1000 | SZG-1500 | SZG-2000 |
| Total volume (L) | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 |
| Loading volume (L) | ≤50 | ≤ 175 | ≤ 250 | ≤ 375 | ≤ 500 | ≤ 750 | ≤ 1000 |
| Rotary speed (r/min) | 3-13 | ||||||
| Motor power (kw) | 0.75 | 1.1 | 1.5 | 2 | 3 | 3 | 4 |
| Rotary height (m) | 1.75 | 2.1 | 2.25 | 2.49 | 2.8 | 2.94 | 2.99 |
| Tank inner pressure (Mpa) | -0.1-0.15 | ||||||
| Clip set pressure (Mpa) | ≤ 0.3 | ||||||
| Working temp.(°C) | Inner tank ≤ 85 Clip set ≤ 140 | ||||||
| Heating media | Steam, Hot water, Heat transfer oil | ||||||
| Weight (kg) | 800 | 1100 | 1200 | 1500 | 2800 | 3300 | 3600 |
| Floor area (L*W) | 2160*800 | 2260*800 | 2350*800 | 2550*1000 | 2860*1300 | 3260*1400 | 3760*1800 |
◆ _The dryer is suitable for drying and mixing powder or granule shape raw material of pharmaceutical industry, foodstuff industry, chemical industry and so on.
◆ _Flammable and explosive material drying should be clamed.
◆ _When use hot water or heat conducting oil as heating resource, should be claimed before the order. Please claimed when order if need certificate of pressure vessel.
◆ _Please claim it when need GMP standard. (It should use direct gear drive, closed construction, vacuum cover is sintered metal mesh).
◆ _Material:SS304/SS316L/SS321/ hastelloy etc, inner wall is enamel for your choice.
◆ _We recommend being adopt speed adjustable control and central axis integrated procession when the volume of machine is larger than 2000L

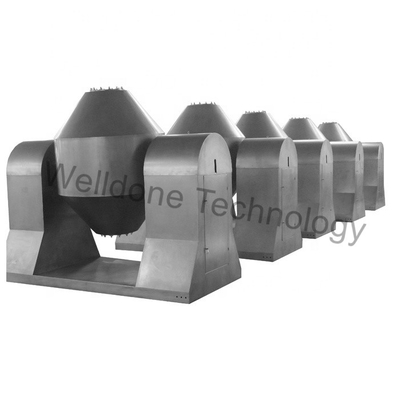

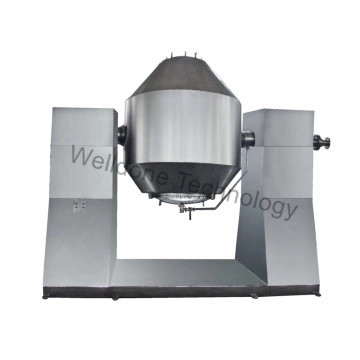

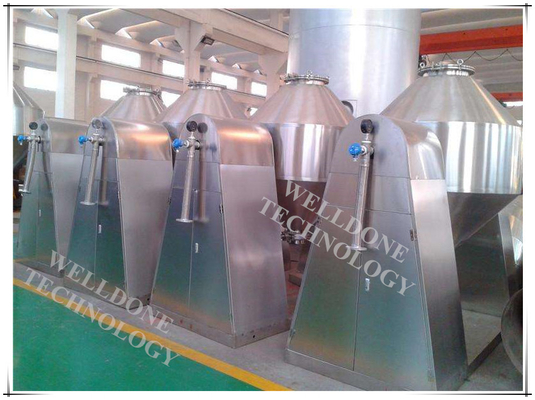

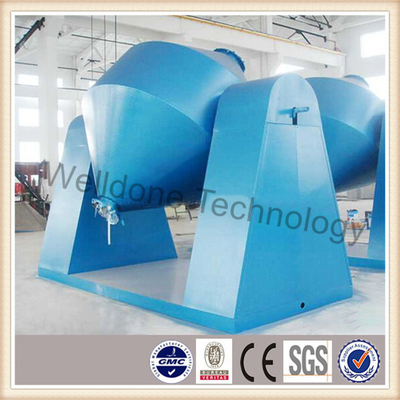

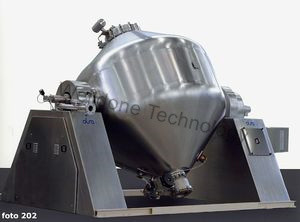

Picture of Cost effective Automated Compact Double Conical Vacuum Dryer in Working
