Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer For Powder

Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder
large.img.alt
Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder

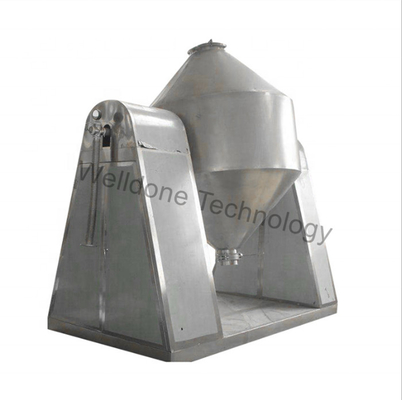

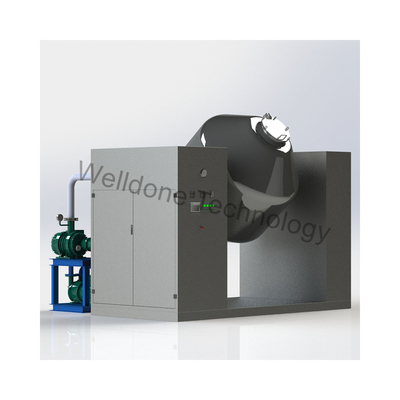

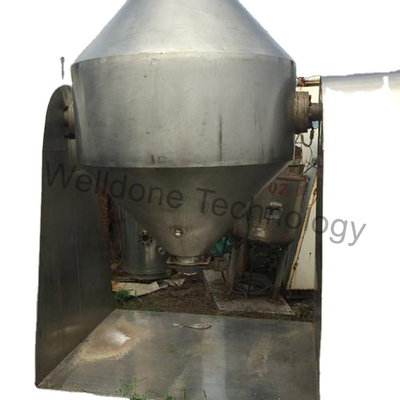

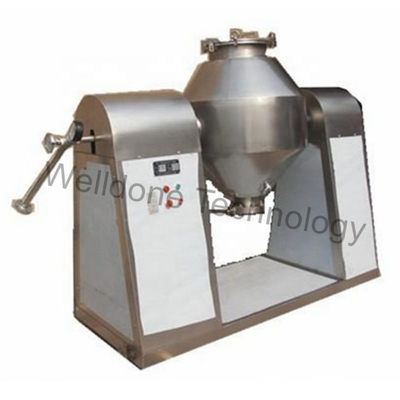

Large Image :  Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer For Powder

Product Details:
Place of Origin: China
Brand Name: WELLDONE
Certification: CE, ISO 9001: 2008, ISO 10004
Model Number: SZG-(100-6000)
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Wooden Case + Plastic Film + Steel Frame
Delivery Time: 30-60Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10Sets/Months

Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer For Powder

Description
Voltage: 110V/220V/380V/415V/480V Hertz: 50HZ, 60HZ
Material: SUS304/SUS316L Weight: 0.5Ton-40Ton
Heating Resource: Steam/Thermal Oil/Hot Water Special Design: Explosion Resistance/Low Temperature Drying
High Light:

vacuum drum dryer

,

industrial vacuum dryer

Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer For Powder

Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder 0

Principle of Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer For Powder

1) When the heat source (hot water, low pressure steam, or thermal oil) pass through the sealed jacket, the heat will be transmitted to raw material through the inner shell;
2) Under action of driving power, the tank is rotated slowly and the raw material is mixed continuously. The purpose of reinforced drying can be realized;
3) The raw material is under vacuum condition. When steam pressure is dropping, it makes the moisture (solvent) at the surface of raw material become saturation and then evaporates. The solvent will be discharged through vacuum pump.
4) The moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously.
5) The production processes are carried out continuously and the drying can be done in a short time.

Type Total volume(L) Working volume (L) Heating area Speed (rpm) Power (KW) Height of rotating (MM) Weight (Kg)
SZG100 100 50 1.16 3-13 0.75 1600 550
SZG200 200 100 1.5 3-13 1.1 1800 700
SZG300 300 150 2 3-13 1.5 1800 800
SZG500 500 250 2.63 3-13 1.5 2060 1100
SZG1000 1000 500 4.61 3-13 3 2500 1300
SZG1500 1500 750 5.58 3-13 3 2800 1500

Features of Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer For Powder

◆ _The dryer is suitable for drying and mixing powder or granule shape raw material of pharmaceutical industry, foodstuff industry, chemical industry and so on.
◆ _Flammable and explosive material drying should be clamed.
◆ _When use hot water or heat conducting oil as heating resource, should be claimed before the order. Please claimed when order if need certificate of pressure vessel.
◆ _Please claim it when need GMP standard. (It should use direct gear drive, closed construction, vacuum cover is sintered metal mesh).
◆ _Material:SS304/SS316L/SS321/ hastelloy etc, inner wall is enamel for your choice.
◆ _We recommend being adopt speed adjustable control and central axis integrated procession when the volume of machine is larger than 2000L


Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder 1
Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder 2
Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder 3




Technical Parameters of Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer For Powder

Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder 4


Picture of Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer For Powder
Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder 5
Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder 6
Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder 7
Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder 8




After Sell Service

Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder 9


Service before sell:
----Provide relative technical data for help equipment selection
----Running pilot test
----Offering advice for equipment selection, material analysis
----Provide flow chart, basic drawing
----Provide technical design
Service in sell:
----Provide factory layout according to contract
----Manufacturing ordered equipment according to the related standard
---- A presentation report of manufacturing situation will be offered every 15days
---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement
---- Photo of wooden case will be offered, wooden case with standard shipping marks.
---- Photo of freight loading will be offered.
---- A record of detailed delivery list will be offered
---- A record of detailed freight loading list will be offered
---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing
Service after sell:
----Send service engineer for help instruct installation.
----Send service engineer for running test at site and training the operator
----Help client for maintenance and repair
----Provide one year spare part
----Quality warranty for two years after sell




Packing & Delivery

Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder 10
Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder 11
Customized Cost Effective Humanized Design Thermal Oil Rotary Cone Vacuum Dryer  For Powder 12
