Automated Humanized Design High Temperature Vacuum Drying Oven

Automated Humanized Design High Temperature Vacuum Drying Oven
Automated Humanized Design High Temperature Vacuum Drying Oven Automated Humanized Design High Temperature Vacuum Drying Oven Automated Humanized Design High Temperature Vacuum Drying Oven Automated Humanized Design High Temperature Vacuum Drying Oven Automated Humanized Design High Temperature Vacuum Drying Oven Automated Humanized Design High Temperature Vacuum Drying Oven

Large Image :  Automated Humanized Design High Temperature Vacuum Drying Oven

Product Details:
Place of Origin: China
Brand Name: WELLDONE
Certification: CE, ISO 9001: 2008, ISO 10004
Model Number: FZG-(10-60)
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Wooden Case + Plastic Film + Steel Frame
Delivery Time: 30-60Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10Sets/Months

Automated Humanized Design High Temperature Vacuum Drying Oven

Description
Voltage: 380V Hertz: 60HZ
Material: SUS316L Installation Power: 15KW
Drying Temperature: 75℃ Weight: 7Ton
Heating Resource: Thermal Oil Drying Efficiency: 80%
Way To Control: Button Special Design: Explosion Resistance
Loading Capcity: 55KGS/Batch
High Light:

rotary tray dryer

,

cabinet tray dryer

Description of Automated Humanized Design High Temperature Vacuum Drying Oven

Automated Humanized Design High Temperature Vacuum Drying Oven 0

The dryer uses a vacuum pump to pump out most of the air and evaporated water. Put hot water, steam or hot oil into the dryer, put the raw materials into the drying plate and dry them under vacuum.

Features of Automated Humanized Design High Temperature Vacuum Drying Oven

1. Under the vacuum condition, the boiling point of raw material will decrease and could heated more uniform.

2. Hot water, steam and thermal oil are available heating resource.

3. The heat loss is less.

4. Operated in closed vacuum condition, there has no cross-contamination, which meet GMP standard.

5. Static drying, raw material could keep its integrity during drying.





Automated Humanized Design High Temperature Vacuum Drying Oven 1

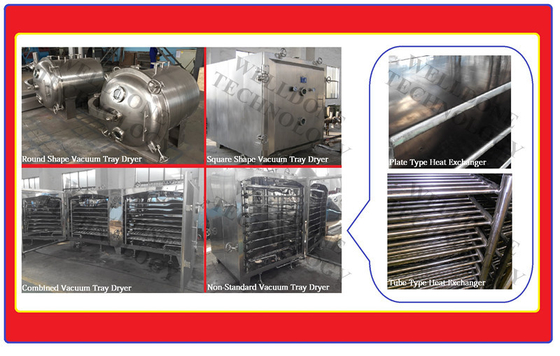

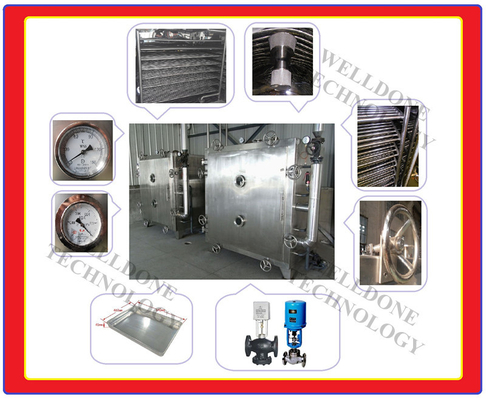

Picture of Automated Humanized Design High Temperature Vacuum Drying Oven



Automated Humanized Design High Temperature Vacuum Drying Oven 2

After Sell Service

Automated Humanized Design High Temperature Vacuum Drying Oven 3



Service before sell:

----Provide relative technical data for help equipment selection

----Running pilot test

----Offering advice for equipment selection, material analysis

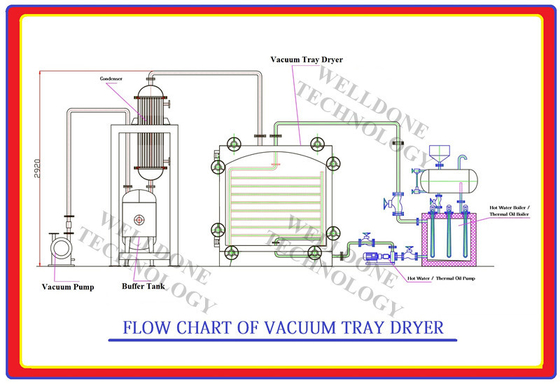

----Provide flow chart, basic drawing

----Provide technical design



Service in sell:

----Provide factory layout according to contract

----Manufacturing ordered equipment according to the related standard

---- A presentation report of manufacturing situation will be offered every 15days

---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement

---- Photo of wooden case will be offered, wooden case with standard shipping marks.

---- Photo of freight loading will be offered.

---- A record of detailed delivery list will be offered

---- A record of detailed freight loading list will be offered

---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing



Service after sell:

----Send service engineer for help instruct installation.

----Send service engineer for running test at site and training the operator

----Help client for maintenance and repair

----Provide one year spare part

----Quality warranty for two years after sell





Packing & Delivery

Automated Humanized Design High Temperature Vacuum Drying Oven 4
