ISO10004 85KW Tubular Vacuum Disc Dryer Chamber remote control

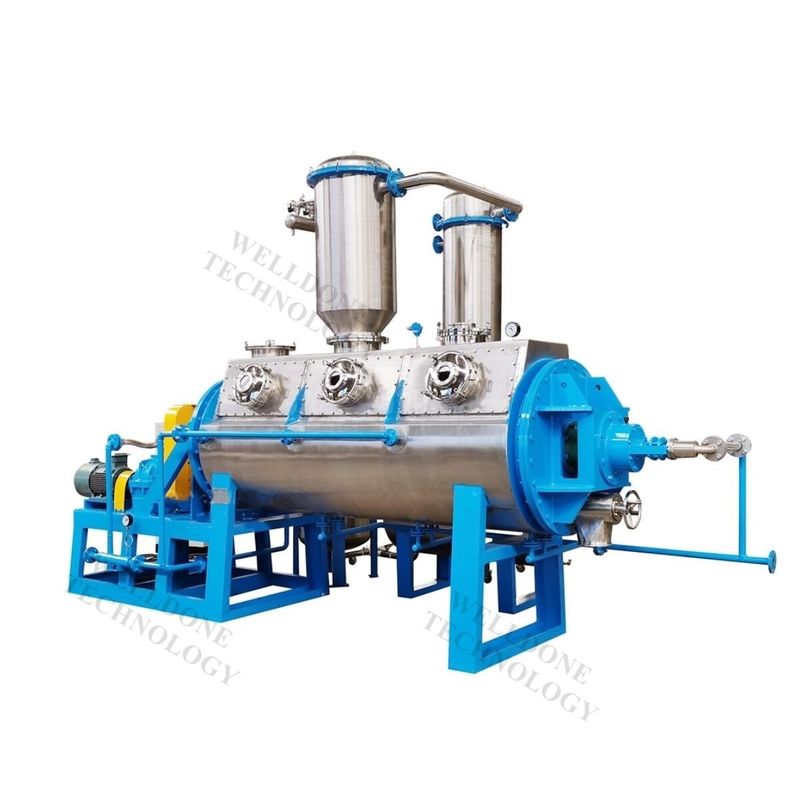

Large Image : ISO10004 85KW Tubular Vacuum Disc Dryer Chamber remote control

Product Details:

Place of Origin:	China
Brand Name:	WELLDONE
Certification:	CE, ISO 9001: 2008, ISO 10004
Model Number:	PZG-(500-12000)

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	11000 USD to 200000 USD
Packaging Details:	Wooden Case + Plastic Film + Steel Frame
Delivery Time:	30-60Working Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10Sets/Months

Contact Now

ISO10004 85KW Tubular Vacuum Disc Dryer Chamber remote control

Description

Voltage:	110V/220V/380V/415V/480V	Hertz:	50HZ, 60HZ
Material:	CS/SUS304/SUS316L/Titanium	Installation Power:	5.5KW-85KW
Drying Temperature:	50-150℃	Weight:	0.8Ton-40Ton
Heating Resource:	Steam/Thermal Oil/Hot Water	Drying Efficiency:	80%
Way To Control:	Button/Touch Screen/Remote	Special Design:	Explosion Resistance/Low Temperature Drying
Loading Capcity:	150KGS/Batch-8000KGS/Batch
Highlight:	ISO10004 Vacuum Disc Dryer , 85KW Vacuum Disc Dryer , 85KW vacuum drying chamber

Description of Vacuum Disc Dryer with Large Drying Surface and High Drying Efficiency

Disc type vacuum paddle dryer adopt the paddle of round disc, it has larger drying area than regular design, the drying speed is much faster, and it just occupied much less space.

Features of Vacuum Disc Dryer with Large Drying Surface and High Drying Efficiency

1. Used for drying or reacting of pastes, filter cakes, powders, and granules under vacuum condition;

2. Heating area: 10-300 M2

3. Volume of drying chamber: 500-25000 L

4. Working type: Batch type or continuous

5. Heat source: steam, hot water or hot oil

Advantages of Vacuum Disc Dryer with Large Drying Surface and High Drying Efficiency

PZG series rotary vacuum paddle dryer is an indirect heating drying processor which gives drying, mixing and breaking effects simultaneously. Wet cake or slurry is fed through feed port. The main shaft with hollow discs rotates in different directions to regularly move and mix the material, while vacuum is applied in the dryer and heating media is circulated in the jacket of drying chamber and hollow discs. Evaporation of moisture takes place under vacuum condition and vapors passes through the dust catcher into the condenser, where it is condensed and collected in the receiver. Dried material is discharged through discharge valve.

ZPG series vacuum paddle dryer has been widely used for drying wet cake product after filtration especially sticky heat sensitive paste material. This equipment can be used in drying process of various Pharmaceuticals, Intermediate Compounds, Fine Chemicals, Chemicals, Agro Chemicals, Pesticides, Insecticides, Dyes and Food Products which have the following properties:

1) Powder, slurry, paste and filter cake wet materials;
2) Heat sensitive wet materials
3) Easy-oxidizing, toxic, explosive wet materials
4) Moisture is organic solution and need to be recovered

ISO10004 85KW Tubular Vacuum Disc Dryer Chamber remote control 2

Technical Parameters of Large Drying Area Fast Drying Speed Disc Type Vacuum Dryer For Powder and Granule Product

ISO10004 85KW Tubular Vacuum Disc Dryer Chamber remote control 3

ISO10004 85KW Tubular Vacuum Disc Dryer Chamber remote control 4

Picture of Vacuum Paddle Dryer in Working

ISO10004 85KW Tubular Vacuum Disc Dryer Chamber remote control 5

After Sell Service

ISO10004 85KW Tubular Vacuum Disc Dryer Chamber remote control 6

Service before sell:

----Provide relative technical data for help equipment selection

----Running pilot test

----Offering advice for equipment selection, material analysis

----Provide flow chart, basic drawing

----Provide technical design

Service in sell:

----Provide factory layout according to contract

----Manufacturing ordered equipment according to the related standard

---- A presentation report of manufacturing situation will be offered every 15days

---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement

---- Photo of wooden case will be offered, wooden case with standard shipping marks.

---- Photo of freight loading will be offered.

---- A record of detailed delivery list will be offered

---- A record of detailed freight loading list will be offered

---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing

Service after sell:

----Send service engineer for help instruct installation.

----Send service engineer for running test at site and training the operator

----Help client for maintenance and repair

----Provide one year spare part

----Quality warranty for two years after sell
