Product Details:
|
| Voltage: | 110V/220V/380V/415V/480V | Hertz: | 50HZ, 60HZ |
|---|---|---|---|
| Material: | SUS304/SUS316L | Installation Power: | 1.5KW-55KW |
| Drying Temperature: | 50-150℃ | Weight: | 0.5Ton-40Ton |
| Heating Resource: | Steam/Thermal Oil/Hot Water | Drying Efficiency: | 80% |
| Way To Control: | Button/Touch Screen/Remote | Special Design: | Explosion Resistance/Low Temperature Drying |
| Loading Capcity: | 25KGS/Batch-3000KGS/Batch | ||
| Highlight: | GMP Vacuum Drying Machine,rotocone Vacuum Drying Machine,rotocone continuous vacuum dryer |
||
| Type | Total volume(L) | Working volume (L) | Heating area | Speed (rpm) | Power (KW) | Height of rotating (MM) | Weight (Kg) |
| SZG100 | 100 | 50 | 1.16 | 3-13 | 0.75 | 1600 | 550 |
| SZG200 | 200 | 100 | 1.5 | 3-13 | 1.1 | 1800 | 700 |
| SZG300 | 300 | 150 | 2 | 3-13 | 1.5 | 1800 | 800 |
| SZG500 | 500 | 250 | 2.63 | 3-13 | 1.5 | 2060 | 1100 |
| SZG1000 | 1000 | 500 | 4.61 | 3-13 | 3 | 2500 | 1300 |
| SZG1500 | 1500 | 750 | 5.58 | 3-13 | 3 | 2800 | 1500 |
As a specialized company in drying industry, we supply hundred sets to the customers every year. As for working medium, it may be thermal oil or steam or hot water. The biggest may be 8000L. Let heat source (for example, low pressure steam or thermal oil) pass through the sealed jacket. The heat will be transmitted to raw material to be dried through inner shell;Under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. The purpose of reinforced drying can be realized; The raw material is under vacuum. The drop of steam pressure makes the moisture (solvent) at the surface of raw material reach the state of saturation and evaporate. The solvent will be discharged through vacuum pump and recovered in time. The inner moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and the purpose of drying can berealized within a short time.
1) Use automatic constant temperature control if the heat source is thermal oil. It can be used for drying biology products and mineral raw materials. The temperature of operation can be adjusted form 20 ~ 160°C.
2) The heat efficiency will be 2 times or higher comparing to the common dryer.
3) The heating method is indirect drying so the raw material will not be polluted. It is in conformity with the requirement of GMP. 4) The dryer is easy for cleaning and maintenance.

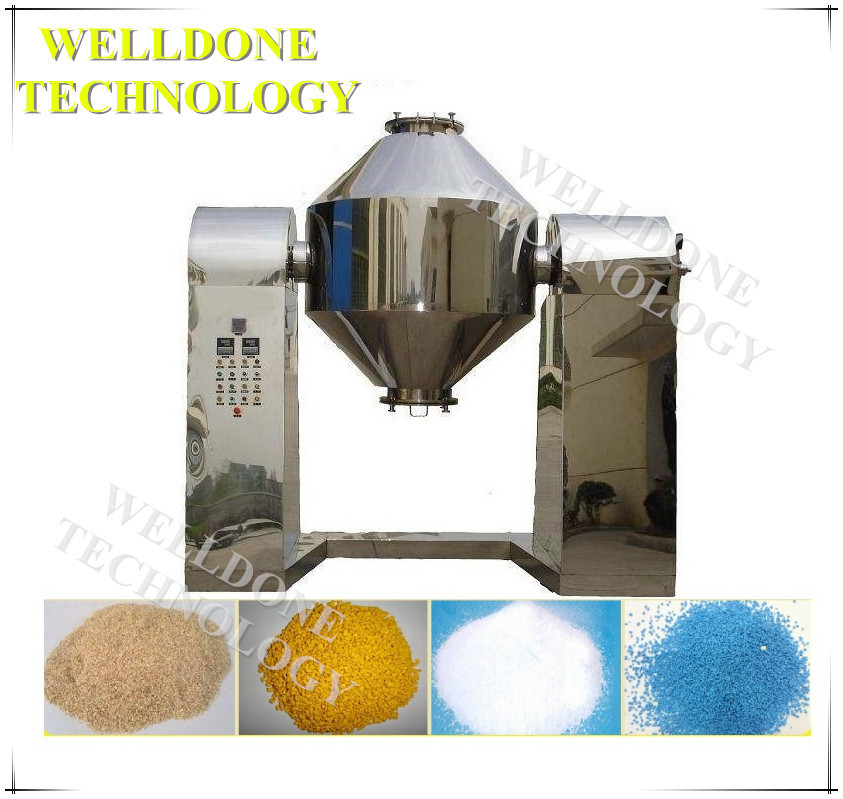

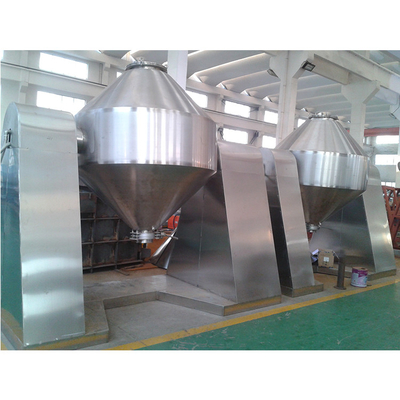

Picture of Simple Maintenance Durable GMP Rotocone Vacuum Drying Machine 6RPM Rotatin Speed
