In Low Cost and High Efficient High Speed Centrifugal Spray Dryer From Liquid To Powder

In Low Cost and High Efficient High Speed Centrifugal Spray Dryer From Liquid To Powder
In Low Cost and High Efficient High Speed Centrifugal Spray Dryer From Liquid To Powder
In Low Cost and High Efficient High Speed Centrifugal Spray Dryer From Liquid To Powder In Low Cost and High Efficient High Speed Centrifugal Spray Dryer From Liquid To Powder In Low Cost and High Efficient High Speed Centrifugal Spray Dryer From Liquid To Powder

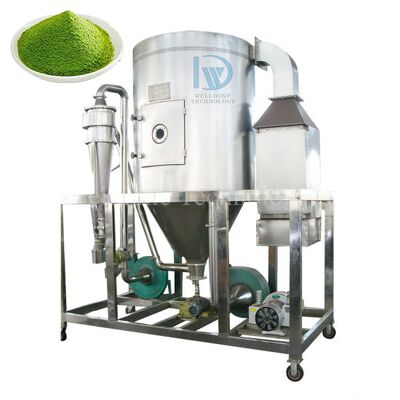

Large Image :  In Low Cost and High Efficient High Speed Centrifugal Spray Dryer From Liquid To Powder

Product Details:
Place of Origin: China
Brand Name: WELLDONE
Certification: CE, ISO 9001: 2008, ISO 10004
Model Number: LPG-(5-2000)
Document: LPG.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Wooden Case + Plastic Film + Steel Frame
Delivery Time: 30-90Working Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 10Sets/Months
Contact Now

In Low Cost and High Efficient High Speed Centrifugal Spray Dryer From Liquid To Powder

Description
Name: In Low Cost And High Efficient High Speed Centrifugal Spray Dryer From Liquid To Powder Voltage: 380V/415V/480V
Material: SUS316L Installation Power: 55KW
Drying Temperature: 120-350℃ Weight: 40Ton
Heating Resource: Gas/Diesel Drying Efficiency: 70%
Highlight:

high speed centrifugal spray dryer

,

liquid to powder spray dryer

,

efficient spray drying machine

High-Speed Centrifugal Spray Dryer: Efficient Liquid-to-Powder Conversion
The spray dryer represents one of the most widely adopted industrial drying solutions, capable of transforming liquid or paste materials directly into fine powder with exceptional efficiency and cost-effectiveness.
Key Features
  • High-Speed Drying: Maximizes liquid surface area, evaporating 95%-98% of water content within seconds. Ideal for heat-sensitive materials requiring rapid processing.
  • Superior Product Quality: Produces uniform, highly soluble, free-flowing powder with exceptional purity and consistency.
  • Simple Operation: Processes materials with 40-60% moisture content (up to 90% for specialized applications) into finished powder in a single step, eliminating the need for additional grinding or sieving.
  • Adjustable Parameters: Provides precise control over product size, bulk density, and moisture content within specified operational ranges.
Working Principle
Filtered and heated air enters the dryer in a controlled spiral pattern through an air distribution system. Liquid material is atomized into fine mist particles by a high-speed rotary atomizer positioned at the tower's apex. Upon contact with the hot air stream, the mist undergoes instantaneous drying, forming solid powder particles. The finished product discharges continuously from both the tower bottom and cyclone separator, while an exhaust system efficiently removes waste air.
In Low Cost and High Efficient High Speed Centrifugal Spray Dryer From Liquid To Powder 0
In Low Cost and High Efficient High Speed Centrifugal Spray Dryer From Liquid To Powder 1
In Low Cost and High Efficient High Speed Centrifugal Spray Dryer From Liquid To Powder 2
Technical Specifications
Product Name High-Speed Centrifugal Spray Dryer
Application Food Industry / Chemical Industry / Pharmaceutical Industry
Construction Material SUS304, SUS316L Stainless Steel
Voltage 220V-600V (To Be Determined)
Drying Temperature 120-300℃
Power Source Electric / Steam / LPG / Diesel
Drying Efficiency 70%
Discharge Method Manual / Pneumatic / Electrical
