Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity

Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity
Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity

Large Image :  Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Welldone
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $3,300-3,600
Contact Now

Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity

Description
Voltage: 220V-480V (TBD) Power: 3.5kw
Dimension: 650*500*1550mm Weight: 120kg
Heating Method: Electric Heating Material: SUS304, SUS316L
Air Inlet Temperature: 30~300℃ Evaporation Capacity: 1kg/h
Drying Temperature: 150-300℃ Drying Efficiency: 50%
Core Components: Pump, Gear, Motor, PLC Construction Material: SUS304/SUS316L/Titanium
Heating Source: Electric Way To Discharge: Manual/ Pneumatic / Electrical
Moisture Content: 40-60% (up To 90%)
Highlight:

30~300℃ Air Inlet Temperature Control Spray Dryer

,

1kg/h Evaporation Capacity Lab Spray Dryer

,

2 Years Warranty Mini Spray Dryer

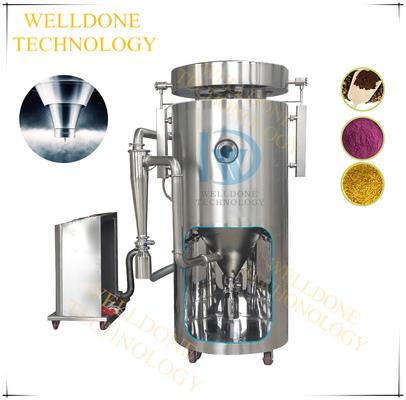

LPG-5 Lab Small Spray Dryer Mini / Laboratory Mini Spray Dryer Machine
Product Overview
The LPG-5 lab small spray dryer is designed for laboratory-scale drying applications with enhanced features to address common industry challenges. Its optimized design includes enlarged drying tower diameter and arc transitions to minimize flavor wall adhesion issues.
Key Features
  • High-speed drying capability - evaporates 95%-98% of water in seconds, ideal for heat-sensitive materials
  • Produces uniform powder with excellent solubility, fluidity, and purity
  • Simplified operation - converts liquids with 40-60% moisture content (up to 90% for special materials) to powder in one step
  • Adjustable product parameters - size, bulk density, and moisture content can be customized
  • Optional cooling device maintains lower product temperature
  • Optional Chamber Air Jet system reduces wall adhesion
Technical Specifications
Item Value
Type Spray Drying Equipment
Applications Chemicals, Plastics, Food Processing
Construction Material SUS304, SUS316L, Titanium
Voltage 220V-480V (TBD)
Power 2.2KW-255KW
Drying Temperature 150-300℃
Evaporation Capacity 1.5L-5000L
Warranty 2 years
Working Principle
Filtered and heated air enters the dryer in a spiral pattern through an air distributor. Liquid material is atomized into fine droplets by a high-speed rotary atomizer. The droplets contact the hot air briefly, resulting in rapid drying. Final powder products discharge continuously from the drying tower and cyclone separator, while waste air exits through the exhaust fan.
Product Images
Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity 0 Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity 1 Automatic Lab Spray Dryer with 30~300℃ Air Inlet Temperature Control and 1kg/h Evaporation Capacity 2
Our Comprehensive Services
Pre-Sale Services:
  • Technical data for equipment selection
  • Pilot testing
  • Material analysis and selection advice
  • Flow chart and basic drawing provision
  • Technical design support
During Sale Services:
  • Factory layout planning
  • Regular manufacturing progress reports
  • Complete manufacturing and shipping supervision
  • Detailed documentation including delivery lists
  • Clear serial numbering for all components
After-Sale Services:
  • On-site installation support
  • Commissioning and operator training
  • Maintenance and repair assistance
  • One year spare parts provision
  • Two-year quality warranty
Company Values
Vision: Building lasting relationships with customers as friends and family
Mission: Delivering superior quality, service, and innovation in machinery technology
Values: Professionalism, Progress, Efficiency, and Customer Focus
