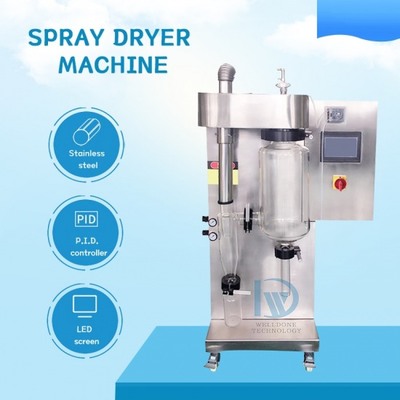

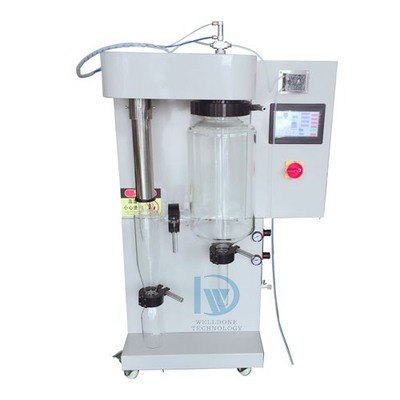

Lab Mini Spray Dryer with 30~300℃ Temperature Control 1kg/h Evaporation Capacity and Low Noise (<50db)

Lab Mini Spray Dryer with 30~300℃ Temperature Control 1kg/h Evaporation Capacity and Low Noise (<50db)
Lab Mini Spray Dryer with 30~300℃ Temperature Control 1kg/h Evaporation Capacity and Low Noise (<50db) Lab Mini Spray Dryer with 30~300℃ Temperature Control 1kg/h Evaporation Capacity and Low Noise (<50db) Lab Mini Spray Dryer with 30~300℃ Temperature Control 1kg/h Evaporation Capacity and Low Noise (<50db) Lab Mini Spray Dryer with 30~300℃ Temperature Control 1kg/h Evaporation Capacity and Low Noise (<50db) Lab Mini Spray Dryer with 30~300℃ Temperature Control 1kg/h Evaporation Capacity and Low Noise (<50db) Lab Mini Spray Dryer with 30~300℃ Temperature Control 1kg/h Evaporation Capacity and Low Noise (<50db)

Large Image :  Lab Mini Spray Dryer with 30~300℃ Temperature Control 1kg/h Evaporation Capacity and Low Noise (<50db)

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Welldone
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $3,000-4,000
Contact Now

Lab Mini Spray Dryer with 30~300℃ Temperature Control 1kg/h Evaporation Capacity and Low Noise (<50db)

Description
Voltage: 220V-480V (TBD) Power: 3.5kw
Dimensions: 650×500×1550mm Weight: 120kg
Heating Method: Electric Heating Material: SUS304, SUS316L
Evaporation Capacity: 1kg/h Air Inlet Temperature: 30~300℃
Minimum Liquid Volume: 20-30ml Noise Level: <50db
Core Components: Pump, Gear, Motor, PLC Heating Source: Electric
Model: SD Display Type: Touchable Face Display
Pump Type: RS2559605 Rotary Pump
Highlight:

30~300℃ Lab Spray Dryer

,

1kg/h Evaporation Capacity Mini Spray Dryer

,

Low Noise Small Spray Dryer

Lab Mini Small Spray Dryer
Lab Mini Spray Dryer with 30~300℃ Temperature Control 1kg/h Evaporation Capacity and Low Noise (<50db) 0 Lab Mini Spray Dryer with 30~300℃ Temperature Control 1kg/h Evaporation Capacity and Low Noise (<50db) 1
Product Introduction
Lab Mini Spray Dryer with 30~300℃ Temperature Control 1kg/h Evaporation Capacity and Low Noise (<50db) 2
Key Features
  • Specialized for lab research, requiring only 20-30ml liquid per test

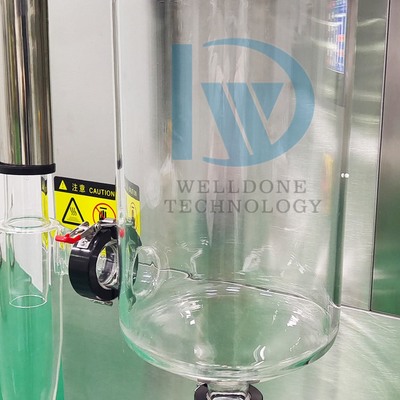

  • Full borosilicate glass construction for clear process monitoring
  • Acid/alkali-resistant components for stable, contamination-free operation
  • Simple assembly, disassembly and cleaning process
  • Oil-free air compressor with low noise (<50db) meeting GMP standards
  • Precise PID temperature control for inlet/outlet
  • Ready-to-use complete system with touchscreen interface
  • Adjustable rotary pump for product feeding
  • Automatic nozzle de-blocking system
Lab Mini Spray Dryer with 30~300℃ Temperature Control 1kg/h Evaporation Capacity and Low Noise (<50db) 3 Lab Mini Spray Dryer with 30~300℃ Temperature Control 1kg/h Evaporation Capacity and Low Noise (<50db) 4
Applications

This laboratory spray dryer is suitable for diverse industries including:

  • Chemical: Silica, alumina, titania, kaolin, ferrite, dyes, resins, plastics
  • Food: Dextrin, maltose, protein powders, instant coffee, flavors
  • Dairy: Milk powders, soy milk powder, ice cream powder
  • Pharmaceutical: Antibiotics, vitamins, enzymes, single cell proteins
  • Building Materials: Ceramic body, frit, superfine powder
  • Environmental: Flue gas desulfurization, wastewater treatment
Lab Mini Spray Dryer with 30~300℃ Temperature Control 1kg/h Evaporation Capacity and Low Noise (<50db) 5
Working Principle
Lab Mini Spray Dryer with 30~300℃ Temperature Control 1kg/h Evaporation Capacity and Low Noise (<50db) 6
Technical Specifications
Type Spray Drying Equipment
Application Medicine, Chemicals, Plastics, Food Processing
Voltage 220V-480V (TBD)
Power 3.5kw
Dimensions 650×500×1550mm
Weight 120kg
Material SUS304/SUS316L
Temperature Range 30~300℃
Warranty 2 years
Core Components PLC, Pump, Gear, Motor
About Welldone Machinery

Changzhou Welldone Machinery Technology Co., Ltd is a professional supplier of dryers and granulators established in 2011. We offer customized solutions with technical support from senior engineers, including free material trials and studies.

Our global customer base spans 50 countries including USA, Canada, Spain, Singapore, and Japan. We provide comprehensive after-sales services including installation, commissioning, and training.
