Spray Dried Fruit Powder Making Machine/Small Whey Spray Drying Equipment

Spray Dried Fruit Powder Making Machine/Small Whey Spray Drying Equipment
Spray Dried Fruit Powder Making Machine/Small Whey Spray Drying Equipment
Spray Dried Fruit Powder Making Machine/Small Whey Spray Drying Equipment Spray Dried Fruit Powder Making Machine/Small Whey Spray Drying Equipment Spray Dried Fruit Powder Making Machine/Small Whey Spray Drying Equipment Spray Dried Fruit Powder Making Machine/Small Whey Spray Drying Equipment Spray Dried Fruit Powder Making Machine/Small Whey Spray Drying Equipment

Large Image :  Spray Dried Fruit Powder Making Machine/Small Whey Spray Drying Equipment

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Welldone
Certification: CE/ISO
Model Number: LPG
Document: LPG.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $5300-125000
Packaging Details: wood pallet
Delivery Time: 26-55days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 2sts per month
Contact Now

Spray Dried Fruit Powder Making Machine/Small Whey Spray Drying Equipment

Description
Name: Food Standard And High Efficient Whey Protein Spray Dryer Machine Equipment Voltage: 220V-600V (TBD)
Material: SUS304, SUS316L Drying Temperature: 120-300℃
Drying Efficiency: 70% Heating Source: Electric
Way To Discharge: Manual/ Pneumatic / Electrical Application: Food/Chemical Industry/Pharmaceutical Industry

LPG-5 Lab Small Spray Dryer Mini / Laboratory Mini Spray Dryer Machine
Product Overview
The LPG-5 lab small spray dryer is designed for laboratory-scale drying applications with enhanced features to address common industry challenges. Its optimized design includes enlarged drying tower diameter and arc transitions to minimize flavor wall adhesion issues.
Key Features
  • High-speed drying capability - evaporates 95%-98% of water in seconds, ideal for heat-sensitive materials
  • Produces uniform powder with excellent solubility, fluidity, and purity
  • Simplified operation - converts liquids with 40-60% moisture content (up to 90% for special materials) to powder in one step
  • Adjustable product parameters - size, bulk density, and moisture content can be customized
  • Optional cooling device maintains lower product temperature
  • Optional Chamber Air Jet system reduces wall adhesion
Technical Specifications
Item Value
Type Spray Drying Equipment
Applications Chemicals, Plastics, Food Processing
Construction Material SUS304, SUS316L, Titanium
Voltage 220V-480V (TBD)
Power 2.2KW-255KW
Drying Temperature 150-300℃
Evaporation Capacity 1.5L-5000L
Warranty 2 years
Working Principle
Filtered and heated air enters the dryer in a spiral pattern through an air distributor. Liquid material is atomized into fine droplets by a high-speed rotary atomizer. The droplets contact the hot air briefly, resulting in rapid drying. Final powder products discharge continuously from the drying tower and cyclone separator, while waste air exits through the exhaust fan.

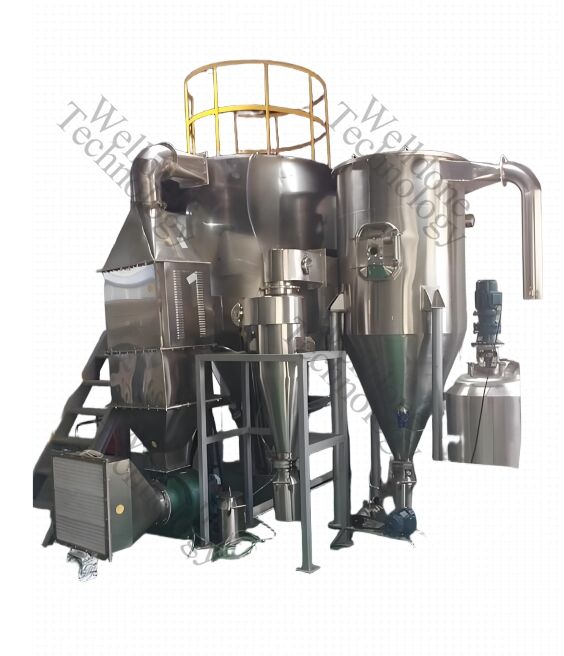

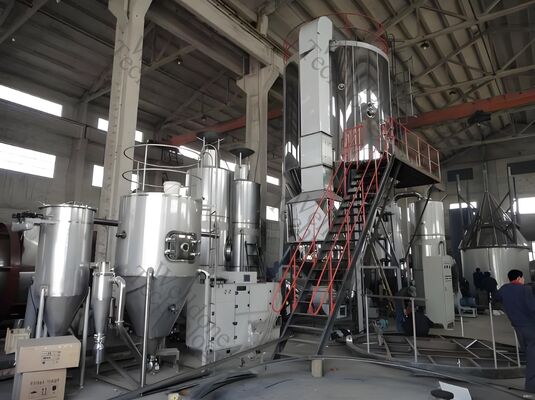

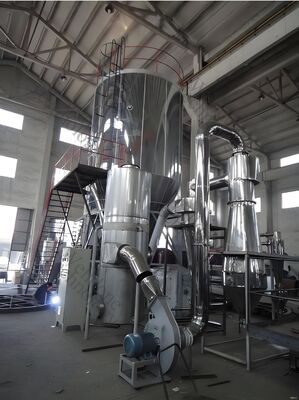

Product Images
Spray Dried Fruit Powder Making Machine/Small Whey Spray Drying Equipment 0 Spray Dried Fruit Powder Making Machine/Small Whey Spray Drying Equipment 1 Spray Dried Fruit Powder Making Machine/Small Whey Spray Drying Equipment 2
Our Comprehensive Services
Pre-Sale Services:
  • Technical data for equipment selection
  • Pilot testing
  • Material analysis and selection advice
  • Flow chart and basic drawing provision
  • Technical design support
During Sale Services:
  • Factory layout planning
  • Regular manufacturing progress reports
  • Complete manufacturing and shipping supervision
  • Detailed documentation including delivery lists
  • Clear serial numbering for all components
After-Sale Services:
  • On-site installation support
  • Commissioning and operator training
  • Maintenance and repair assistance
  • One year spare parts provision
  • Two-year quality warranty
Company Values
Vision: Building lasting relationships with customers as friends and family
Mission: Delivering superior quality, service, and innovation in machinery technology
Values: Professionalism, Progress, Efficiency, and Customer Focus
