2L 3L Lab Spray Dryer with Low Temperature and Vacuum Drying for Superior Product Quality

Large Image : 2L 3L Lab Spray Dryer with Low Temperature and Vacuum Drying for Superior Product Quality

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Welldone
Model Number:	LPG
Document:	LPG.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$5200-135000
Packaging Details:	wood pallet
Delivery Time:	25-48days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	2 sets per month

Contact Now

2L 3L Lab Spray Dryer with Low Temperature and Vacuum Drying for Superior Product Quality

Description

Name:	Energy Saving And Customized Made Gum Arabic Powder Spray Drying Machine	Voltage:	220V-600V (TBD)
Material:	SUS304, SUS316L	Drying Temperature:	120-300℃
Drying Efficiency:	70%	Heating Source:	Electric
Way To Discharge:	Manual/ Pneumatic / Electrical	Application:	Food/Chemical Industry/Pharmaceutical Industry
Highlight:	2L 3L Lab Spray Dryer , Low Temperature Spray Drying Machine , Vacuum Lab Spray Dryer

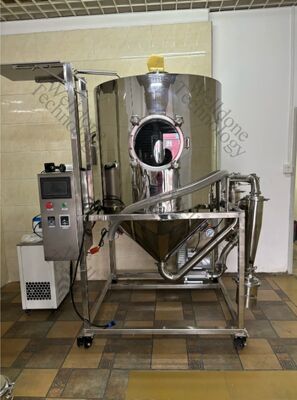

2L 3L Lab-spray-drying-machine

Product Overview

The Lab Mini Low Temperature Vacuum Spray Dryer is designed with an enlarged drying tower diameter to prevent flavor wall adhesion. Featuring arc transitions throughout and constructed from SUS316L or SUS304 materials, this industrial-grade spray dryer offers optional cooling devices and chamber air jet systems for enhanced performance.

Key Features

High-speed drying: Evaporates 95%-98% of water content in seconds, ideal for heat-sensitive materials
Superior product quality: Produces powders with excellent uniformity, solubility, fluidity, and purity
Simplified operation: Processes liquids with 40-90% moisture content directly into powder without grinding or sieving
Adjustable parameters: Customizable product size, bulk density, and moisture content within specified ranges

Operating Principle

Filtered and heated air enters the dryer in a spiral pattern through an air distributor. Liquid material is atomized into fine mist by a high-speed rotary atomizer, rapidly drying upon contact with hot air. Final powder products discharge continuously from the drying tower and cyclone separator, while waste air exits through the exhaust fan.

Technical Specifications

Type	Spray Drying Equipment
Application	Chemicals Processing, Plastics Processing, Food Processing
Construction Material	SUS304, SUS316L, Titanium
Voltage	220V-480V (TBD)
Power	2.2KW-255KW
Drying Temperature	150-300℃
Evaporation Capacity	1.5L-5000L
Drying Efficiency	50%
Warranty	2 years
Weight	250KGS-40000KGS

Comprehensive Service Package

Pre-Sales Service:

Technical data for equipment selection
Pilot test running
Equipment selection and material analysis consultation
Flow chart and basic drawing provision
Technical design support

Sales Service:

Factory layout planning
Standard-compliant manufacturing
Bi-weekly manufacturing progress reports
Full manufacturing and transportation supervision
Comprehensive shipping documentation

After-Sales Service:

On-site installation support
Commissioning and operator training
Maintenance and repair assistance
One year spare parts provision
Two-year quality warranty
