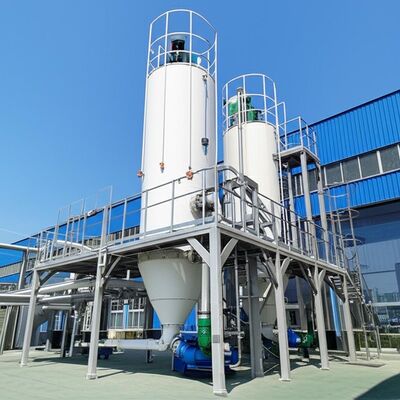

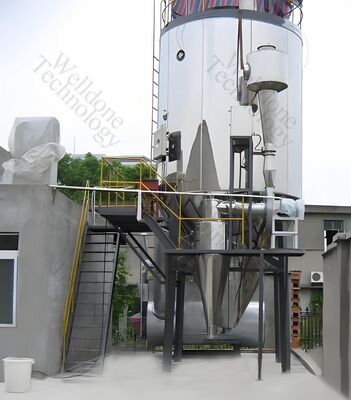

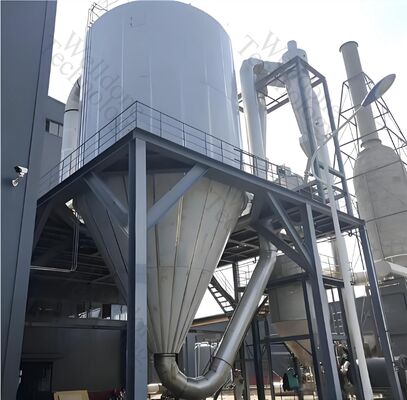

Environmental Friendly and Food Standard Spray Drying Tower Machine

Environmental Friendly and Food Standard Spray Drying Tower Machine
Environmental Friendly and Food Standard Spray Drying Tower Machine
Environmental Friendly and Food Standard Spray Drying Tower Machine Environmental Friendly and Food Standard Spray Drying Tower Machine Environmental Friendly and Food Standard Spray Drying Tower Machine Environmental Friendly and Food Standard Spray Drying Tower Machine Environmental Friendly and Food Standard Spray Drying Tower Machine Environmental Friendly and Food Standard Spray Drying Tower Machine

Large Image :  Environmental Friendly and Food Standard Spray Drying Tower Machine

Product Details:
Place of Origin: China
Brand Name: WELLDONE
Certification: CE, ISO 9001: 2008, ISO 10004
Model Number: LPG-(5-2000)
Document: LPG.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Wooden Case + Plastic Film + Steel Frame
Delivery Time: 30-90Working Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 10Sets/Months
Contact Now

Environmental Friendly and Food Standard Spray Drying Tower Machine

Description
Name: Environmental Friendly And Food Standard Spray Drying Tower Machine Voltage: 380V/415V/480V
Material: SUS304 Drying Temperature: 120-350℃
Heating Resource: Steam/Electric/Gas/Diesel Drying Efficiency: 70%
Way To Control: Button/Touch Screen/Remote Way To Discharge: Manual/ Pneumatic / Electrical
Highlight:

food standard spray drying machine

,

environmental friendly spray dryer

,

industrial spray drying tower

Environmental Friendly and Food Standard Spray Drying Tower Machine
The spray dryer is one of the most popular industrial drying methods, capable of producing powder directly from liquid or paste materials in a single continuous process.
Key Features
  • High-speed drying: Increases surface area of sprayed liquid material, evaporating 95%-98% of water in seconds. Ideal for heat-sensitive materials.
  • Superior product quality: Produces uniform, soluble, free-flowing powder with high purity.
  • Simple operation: Processes materials with 40-60% moisture content (up to 90% for special materials) into powder in one step, eliminating need for grinding or sieving.
  • Adjustable parameters: Allows control over product size, bulk density, and moisture content within specified ranges.
Working Principle
Filtered and heated air enters the dryer in a spiral pattern through an air distributor. Liquid material is atomized into fine mist by a high-speed rotary atomizer at the tower top. Contact with hot air dries the mist into solid powder almost instantly. Finished product discharges continuously from the tower bottom and cyclone separator, while exhaust fan removes waste air.
Environmental Friendly and Food Standard Spray Drying Tower Machine 0 Environmental Friendly and Food Standard Spray Drying Tower Machine 1 Environmental Friendly and Food Standard Spray Drying Tower Machine 2
Technical Specifications
Name Environmental Friendly and Food Standard Spray Drying Tower Machine
Application Food/Chemical industry/Pharmaceutical industry
Construction Material SUS304, SUS316L
Voltage 220V-600V (TBD)
Drying Temperature 120-300℃
Way to Discharge Electric/Steam/LPG/Diesel
Drying Efficiency 70%
Discharge Method Manual/Pneumatic/Electrical
