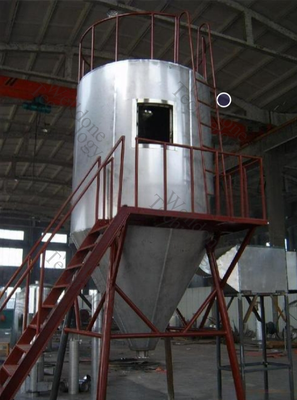

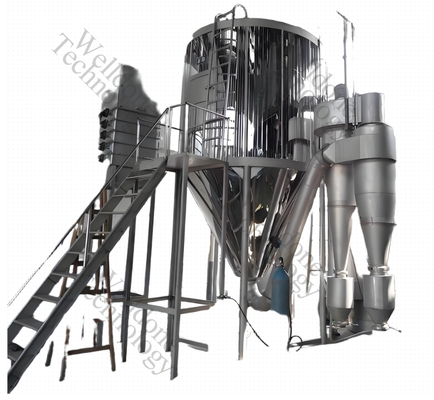

Customized Titanium Oxide Aluminum Zirconium Battery Spray Dryer with Explosion Resistance and Low Temperature Drying

Large Image : Customized Titanium Oxide Aluminum Zirconium Battery Spray Dryer with Explosion Resistance and Low Temperature Drying

Product Details:

Place of Origin:	China
Brand Name:	WELLDONE
Certification:	CE, ISO 9001: 2008, ISO 10004
Model Number:	LPG-(5-2000)
Document:	LPG.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiable
Packaging Details:	Wooden Case + Plastic Film + Steel Frame
Delivery Time:	30-90Working Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	10Sets/Months

Contact Now

Customized Titanium Oxide Aluminum Zirconium Battery Spray Dryer with Explosion Resistance and Low Temperature Drying

Description

Name:	Customized Made Titanium Oxide Aluminum Zirconium Battery Spray Dryer Industrial Spray Drying Machine	Voltage:	380V/415V/480V
Hertz:	50HZ,	Material:	SUS316L
Drying Temperature:	120-350℃	Heating Resource:	Gas/Diesel
Drying Efficiency:	70%	Special Design:	Explosion Resistance/Low Temperature Drying
Highlight:	Customized Titanium Oxide Aluminum Zirconium Battery Spray Dryer , Explosion Resistance Spray Drying Machine , Low Temperature Drying Industrial Spray Dryer

Customized Made Titanium Oxide Aluminum Zirconium Battery Spray Dryer Industrial Spray Drying Machine

Spray drying is one of the most popular industrial drying methods, capable of producing powder directly from liquid or paste materials.

Key Features

High-Speed Drying: Liquid raw material surface area increases dramatically when sprayed, enabling 95%-98% water evaporation within seconds. Ideal for heat-sensitive materials with minimal drying time.
Superior Product Quality: Produces uniform, soluble, free-flowing powders with high purity and excellent consistency.
Simplified Process: Easy operation and control. Converts materials with 40-60% moisture content (up to 90% for special materials) directly into powder without additional grinding or sieving steps.
Adjustable Parameters: Customizable product size, bulk density, and moisture content within specified ranges.

Operating Principle

Filtered and heated air enters the dryer in a spiral pattern through an air distributor. Liquid raw material is atomized into fine mist beads by a high-speed rotary atomizer at the tower top. Contact with hot air rapidly dries the liquid into solid powder, which is continuously discharged from the drying tower bottom and cyclone separator. Exhaust air is removed by the exhaust fan.
